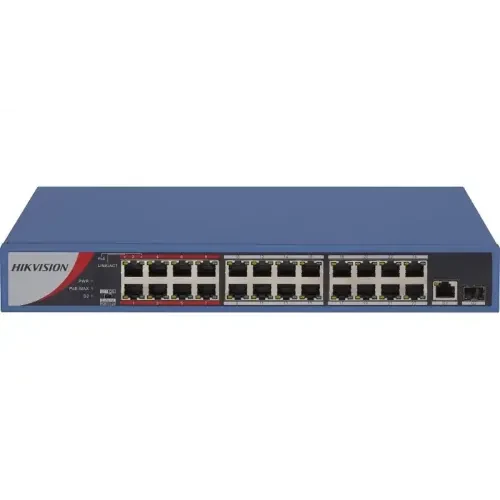

Hikvision DS-3E0326P-E/M(B) 24 Port Unmanaged POE Switch

(0) 0 Reviews 0 Orders 0 Wish listed

Product Code: 140922

Key Features

Model: DS-3E0326P-E/M(B)
Ports: 24× 10/100Mbps PoE Ports, 1× Gigabyte RJ45 Port , 1× SFP Port
Switching Capacity: 8.8Gbps, Packet Forwarding Rate: 6.547 Mpps
PoE Power Budget: 230W (30W Per Ports), Intelligent PoE Management
Up to 300 m Long Range PoE Transmission, 6KV Surge Protection

৳17,500.00 ~~৳18,000.00~~

Quantity :

Quantity:

Total price :

(Tax : )

Overview
Reviews

Specification

Main Feature
Type	Unmanaged POE Switch
Port	24 × 10/100 Mbps PoE ports 1 × gigabit RJ45 port 1 × gigabit fiber optical port
Network Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Transmission Method	Store-and-forward switching
Data Transmission Rate	Switching Capacity: 8.8 Gbps Packet Forwarding Rate: 6.547 Mpps Internal Cache: 2.75 Mbits
MAC Address Table	4K
Environment	Operating temperature: -10 °C to 55 °C (14 °F to 131 °F) Storage temperature: -40 °C to 85 °C (-40 °F to 185 °F) Operating humidity: 5% to 95% (no condensation) Storage humidity: 5% to 95% (no condensation)
Hardware Features
Interface	RJ45 port, full duplex, MDI/MDI-X adaptive
Power Supply	Max. Port Power: 30 W PoE Power Budget: 230 W
Dimensions (L x W x H)	335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”)
Weight	2.55 kg (5.60 lb)
Manufacture Warranty
Warranty	1 year

Description

Hikvision DS-3E0326P-E/M(B) 24 Port Unmanaged POE Switch

The Hikvision DS-3E0326P-E/M(B) is a 24-port unmanaged PoE switch with intelligent PoE management that extends its life by managing power supply when limits are exceeded. It supports up to 300 meters of long-range PoE transmission, making it ideal for connecting IPCs over long distances. The 4/8-core adaptive power supply reduces power loss on cables. The built-in 6KV surge protection improves reliability in harsh environments by protecting the switch from sudden lightning surges. The VIP port, which is optimized for video transmission, ensures that critical data is transferred seamlessly even during network congestion. The Hikvision DS-3E0326P-E/M(B) 24 Port POE Switch offers 24 × 10/100 Mbps PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port for flexible connectivity options. It has an RJ45 port, full duplex, MDI/MDI-X adaptive capabilities, and can operate in both standard and extended modes. Hikvision's DS-3E0326P-E/M(B) 24 Port POE Switch supports store-and-forward switching and is compliant with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards. It has high-priority ports (1 to 8), a 4K MAC address table, 8.8 Gbps switching capacity, and a packet forwarding rate of 6.547 Mpps, ensuring efficient network performance. The internal cache size of 2.75 Mbits improves data handling capabilities. The PoE power supply meets IEEE 802.3af and IEEE 802.3at standards, with a maximum port power of 30 W and a total PoE power budget of 230 W. Additionally, the Hikvision DS-3E0326P-E/M(B) 24 Port POE Switch has a long-range dialing function that extends port 17 to 24 distances of up to 300 meters at a port speed of 10 Mbps.

Buy Hikvision DS-3E0326P-E/M(B) 24 Port Unmanaged POE Switch from Fast Deals

In Bangladesh, you can get original Hikvision DS-3E0326P-E/M(B) 24 Port Unmanaged POE Switch From Fast Deals. We have a large collection of latest Hikvision Switch to purchase. Order Online Or Visit your Nearest Fast Deals Shop to get yours at lowest price. The Hikvision DS-3E0326P-E/M(B) 24 Port Unmanaged POE Switch comes with 1 year warranty.
