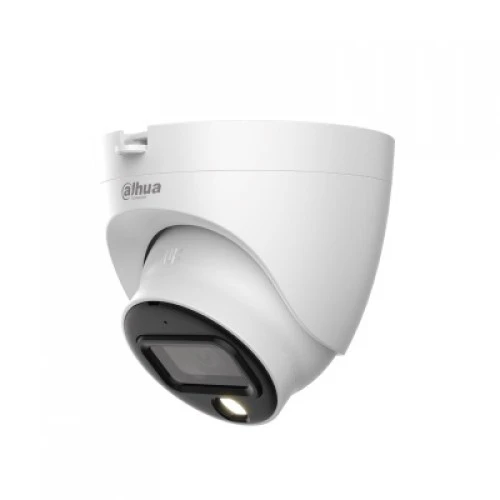

Dahua DH-HAC-HDW1509TLQP-A-LED 5MP Color HDCVI Eyeball Camera

(0) 0 Reviews 0 Orders 0 Wish listed

Product Code: 120293

Key Features

Model: DH-HAC-HDW1509TLQP-A-LED
Max 25 fps@5MP (16:9 video output), IP67 Water Rating
120dB true WDR, 3D NR, Built-in mic (-A),
24/7 color imaging, 20 m illumination distance
3.6 mm fixed lens, Field of View: H: 88; V: 46°; D: 104°

৳4,150.00 ~~৳4,700.00~~

Quantity :

Quantity:

Total price :

(Tax : )

Overview
Reviews

Specification

General
Casing	Metal inner core + plastic cover + plastic pedestal
Dimensions	φ97.1 mm × 91.4 mm (φ3.82" × 3.6")
Weight	Net Weight: 0.24 Kg (0.53 lb) Gross Weight: 0.37 Kg (0.82 lb)
Pan/Tilt/Rotation	Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Operating Conditions	–40 °C to +55 °C (–40 °F to +131 °F); < 95% (non-condensation)
Storage Conditions	–40 °C to +55 °C (–40 °F to +131 °F); < 95% (non-condensation)
Power Supply	12 V ±30% DC
Power Consumption	Max 4.4 W (12 V DC, warm light on)
Camera
Image Sensor	5MP CMOS
Effective Pixels	5MP
Scanning System	Progressive
Electronic Shutter Speed	PAL:1/3 s–1/100,000 s NTSC:1/4 s–1/100,000 s
Minimum Illumination	0.001 Lux/F1.0, 0 Lux warm light on
S/N Ratio	> 65 dB
IR Distance	Fixed iris
Lens
Lens Type	Fixed lens
Mount Type	M12
Focal Length	2.8 mm; 3.6 mm
Max Aperture	F1.0
Angle of View	2.8 mm: H: 112°; V: 57°; D: 132° 3.6 mm: H: 88; V: 46°; D: 104°
Focus Control	Auto; manual
Close Focus Distance	2.8 mm: 1.6 m (5.25 ft); 3.6 mm: 2.3 m (7.5 ft)
Video
Resolution	2880 (H) × 1620 (V)
Frame Rate	PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
BLC Mode	BLC/HLC/WDR/HLC-Pro
Gain Control	Auto; manual
Noise Reduction	3D NR
Interface
Audio Interface	One channel built-in mic (-A)
Video Interface	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Warranty
Warranty	01-year warranty

Description

Dahua DH-HAC-HDW1509TLQP-A-LED 5MP Color HDCVI Eyeball Camera

The Dahua DH-HAC-HDW1509TLQP-A-LED HDCVI Eyeball Camera is designed for those that need high-quality monitoring tools at a low cost. It is both cost-effective and high-performing, making it an excellent choice for household and small-to-medium-sized commercial applications. This series provides a wide range of technologies, such as Full-color and Starlight, as well as a variety of solutions for diverse settings. A wide aperture lens and a high-performance sensor are used in this full-color camera. The camera provides 24/7 color monitoring that collects clear and vivid information, significantly increasing the probability of gathering valid human, vehicle, and event evidence that can be used for further intelligent analysis, thanks to a higher amount of absorbed light and advanced image processing algorithm. The Dahua DH-HAC-HDW1509TLQP-A-LED HDCVI Eyeball Camera series of strict tests on dust and soak. It has a dust-proof function and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. The Dahua DH-HAC-HDW1509TLQP-A-LED HDCVI Eyeball Camera comes with a 01-year warranty.

What is the price of Dahua DH-HAC-HDW1509TLQP-A-LED HDCVI Eyeball Camera in Bangladesh?

The latest price of Dahua DH-HAC-HDW1509TLQP-A-LED HDCVI Eyeball Camera in Bangladesh is 4,100৳. You can buy the Dahua DH-HAC-HDW1509TLQP-A-LED HDCVI Eyeball Camera at best price from our website or visit any of our showrooms.
