Cudy GS1016E 16-Port Gigabit Unmanaged Switch

(0) 0 Reviews 0 Orders 0 Wish listed

Product Code: 187747

Key Features

Model: GS1016E
Switching Capacity: Max. 32 Gbps
Forwarding Rate: Max. 23.808 Mpps
Ports: 16 x 10/100/1000Mbps Gigabit Ethernet
Range: 250-meter Transmission Extend Mode ports

৳10,800.00 ~~৳11,000.00~~

Quantity :

Quantity:

Total price :

(Tax : )

Overview
Reviews

Specification

Main Feature
Type	Unmanaged Gigabit Switch
Port	16 x 10/100/1000Mbps Gigabit Ethernet
Transmission Method	Store-and-Forward
Data Transmission Rate	Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps Cat. 6 or higher cable: 150 meters at Gigabit
MAC Address Table	8192
Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Hardware Features
Interface	Gigabit RJ45 Ports: 16 Extend Mode Ports: #1~#14 VLAN Mode Ports: #1~#14
LED	Power Speed/Link/ACT of Each Ethernet Port
Power Supply	Power Methods: AC AC: 90~260V 50/60Hz Max Power Consumption: 7.8W Idle Power Consumption: 4.5W
Dimensions (L x W x H)	200×118×44 mm 7.87×4.65×1.73 inches
Weight	625.5 g (22.06 oz.)
Manufacture Warranty
Warranty	1-Year

Description

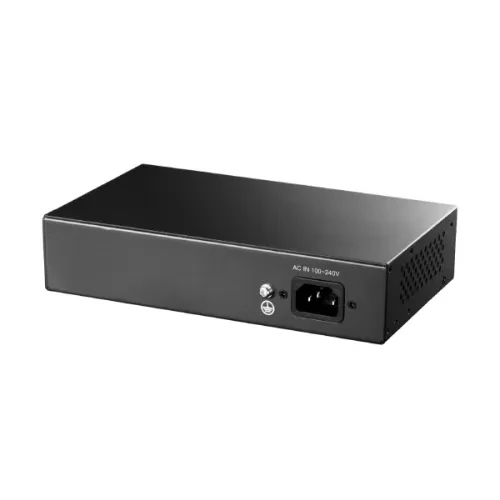

Cudy GS1016E 16-Port Gigabit Unmanaged Switch

The Cudy GS1016E 16-port Gigabit Switch is suitable for small enterprises, home offices, and enterprise networks. With 16 Gigabit RJ45 ports, it provides fast and dependable wired connections for easy data transfer. The 16-port network switch provides web management and SNMP for simple network monitoring and configuration. VLAN capability includes 802.1Q, MTU, voice, and port-based VLANs. The Cudy GS1016E 16-Port Switch incorporates Layer 2 management functions like as port mirroring, static aggregation, and loop prevention into STP/RSTP protocols. It features IGMP snooping and DHCP snooping, which optimize multicast traffic while blocking unwanted network access. The Cudy GS1016E 16-Port Gigabit Switch offers three preset modes. Managed, VLAN, and Extend are all changeable via a physical DIP switch for easier operation. Extend Mode supports data transmission up to 250 meters on ports 1-14 at 10 Mbps, making it perfect for surveillance or remote network expansion. It has a switching capacity of 32 Gbps and a forwarding rate of 23.808 Mpps, ensuring fast data transfer with low latency. The Cudy GS1016E 16-Port Gigabit Switch uses energy-efficient technology and supports IEEE 802.3az power-saving protocols, which reduces energy usage. It has a 8,192-entry MAC address table, a 4 Mbit packet buffer, and supports jumbo frames of up to 15 KB for efficient data handling. Installation is versatile, with brackets available for both desktop and rack-mount configurations. The Cudy GS1016E 16-Port Switch accepts Cat. 3 or higher cables for 10 Mbps connections of up to 100 meters and Cat. 5e or above cables for Gigabit rates of up to 150 metres.

Buy Cudy GS1016E 16-Port Gigabit Switch from Fast Deals

In Bangladesh, you can get original Cudy GS1016E 16-Port Gigabit Switch From Fast Deals. We have a large collection of latest Cudy Switch to purchase. Order Online Or Visit your Nearest Fast Deals Shop to get yours at lowest price. The Cudy GS1016E 16-Port Gigabit Switch comes with 1 years warranty.
