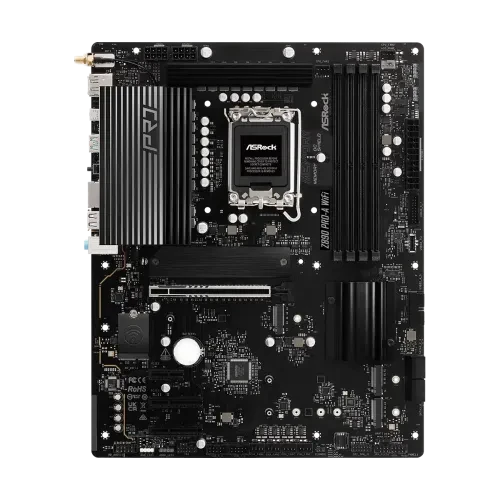

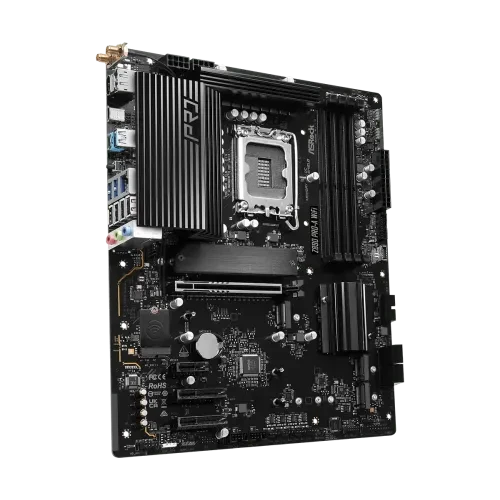

ASRock Z890 Pro-A WiFi LGA1851 DDR5 ATX Motherboard

(0) 0 Reviews 0 Orders 0 Wish listed

Product Code: 122402

Key Features

Model: Z890 Pro-A WiFi
Supported CPU: Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM)
Supported RAM: 4x DDR5, Max 256GB, Supports Up to 9066MHz+(OC)
Graphics Output: 1x HDMI, 1 x DisplayPort, 2 x Intel Thunderbolt 4
Features: 2.5G LAN, 802.11axe Wi-Fi 6E Module, Bluetooth 5.3

৳35,500.00 ~~৳39,000.00~~

Quantity :

Quantity:

Total price :

(Tax : )

Overview
Reviews

Specification

Basic Information
Supported CPU	Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT) Integrated NPU for dedicated AI acceleration
Chipset	Intel Z890
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Form Factor	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm 2oz Copper PCB
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Expansion Slots
PCI	CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode* - 1 x PCIe 4.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) * PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots. Supports NVMe SSD as boot disks
M.2 Socket	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks
Memory
Type	Dual Channel DDR5 Memory Technology
Slots	4 x DDR5 DIMM Slots
Supported Memory	Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)* Supports Clocked Unbuffered DIMM (CUDIMM) Max. capacity of system memory: 256GB Supports Intel® Extreme Memory Profile (XMP) 3.0x *1DPC 1R Up to 9066+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.
Maximum Memory	256GB
Graphics
Graphics	Intel® Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz* * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Supports two 4K displays or one 8K display Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports. If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics.
Connector & Ports
HDMI	1 x HDMI
Display Port (s)	1 x DisplayPort 1.4
USB (s)	CPU: - 1 x Thunderbolt™ 4 Type-C (Rear) - 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) * All USB ports support ESD Protection
LAN Port (s)	2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Wireless Communication module	802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 Supports MU-MIMO * Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. A 6GHz compatible router is required for 6E functionality.
Supported Storage	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio	HD Audio Jacks: Line in / Front Speaker / Microphone

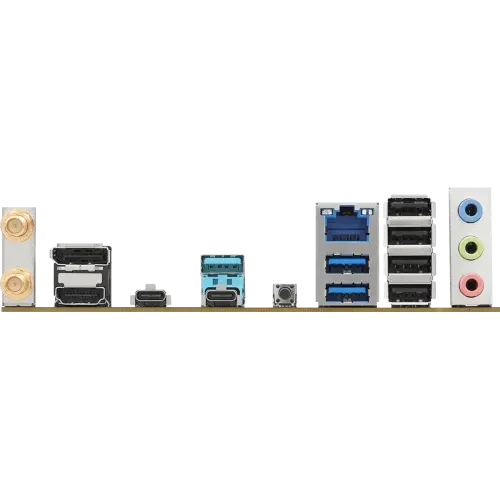

Internal I/O Ports	2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)* 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 2 x USB 3.2 Gen1 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button * Supports USB PD 3.0 up to 5V@3A (15W) charging 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)* 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)* 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)* 1 x 24 pin ATX Power Connector 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) * Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip * CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~5 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~5 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
TPM (Trusted Platform Module )	1 x SPI TPM Header
Others
Special Features	Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - Thunderbolt™ 4 Type-C Port (40 Gb/s) Rock-Solid Durability - 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT - Memory OC Shield Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Bundled Software	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
Warranty Information
Manufacturing Warranty	3 Year Warranty

Description

ASRock Z890 Pro-A WiFi LGA1851 DDR5 ATX Motherboard

The ASRock Z890 Pro-A WiFi LGA1851 DDR5 ATX Motherboard is a premium choice designed to support Intel Core Ultra Processors with Intel Hybrid Technology. This motherboard features a robust 16+1+1+1+1 Power Phase with Dr. MOS for VCore+GT, ensuring stable and efficient power delivery. It supports dual channel DDR5 memory technology with four DDR5 DIMM slots, capable of handling up to 9066MHz+(OC) and a maximum system memory capacity of 256GB, making it ideal for demanding applications. For superb productivity, it offers PCIe Gen5 slots for graphics and M.2, along with Thunderbolt 4 Type-C ports providing speeds up to 40 Gb/s. The ASRock Z890 Pro-A WiFi LGA1851 DDR5 ATX Motherboard boasts ultrafast connectivity with 2.5G LAN and an 802.11axe Wi-Fi 6E module for high-speed internet access. The EZ Update features, including a BIOS Flashback Button and ASRock Auto Driver Installer, simplify system updates. Troubleshooting is made easier with the ASRock Post Status Checker. The Intel Xe LPG Graphics Architecture supports high-resolution displays with HDMI 2.1 and DisplayPort 1.4, both capable of up to 8K 60Hz resolution. The Realtek ALC897 Audio Codec ensures high-definition sound quality. The ASRock Z890 Pro-A WiFi LGA1851 Motherboard provides extensive storage options with multiple Hyper M.2 sockets and SATA3 connectors, supporting various RAID configurations. USB connectivity is robust with multiple USB 3.2 Gen2x2, Gen2, and Gen1 ports, along with USB 2.0 for comprehensive peripheral support. Additional features include support for RGB and addressable LED headers, multiple fan connectors with smart speed control, and a high-density ATX power connector. The ASRock Z890 Pro-A WiFi motherboard combines cutting-edge performance, durability, and advanced connectivity, making it an excellent choice for gamers, content creators, and professionals requiring high-speed data transfers and robust system performance.

Buy ASRock Z890 Pro-A WiFi LGA1851 DDR5 ATX Motherboard From Fast Deals

In Bangladesh, you can get original ASRock Z890 Pro-A WiFi LGA1851 DDR5 ATX Motherboard From Fast Deals. We have a large collection of latest ASRock Motherboard to Purchase for your Desktop PC. Order Online Or Visit your Nearest Fast Deals Shop to get yours at lowest price. The ASRock Z890 Pro-A WiFi LGA1851 DDR5 ATX Motherboard comes with a 3-year Warranty.

What is the price of ASRock Z890 Pro-A WiFi LGA1851 DDR5 Motherboard in Bangladesh?

The latest price of ASRock Z890 Pro-A WiFi LGA1851 DDR5 Motherboard in Bangladesh is 35,500৳. You can buy the ASRock Z890 Pro-A WiFi LGA1851 DDR5 Motherboard at best price from our website or visit any of our showrooms.
